No Reviews
Regular price$199.99
/

Version
Mode
Gimbal
  • VAT fees will be added to orders bound for EU member states.
  • Batteries can't be shipped separately, please purchase batteries with Radio units.
  • Customized products require a 40-day lead time and no refunds can be made after the order is placed.

The best just got better! Introducing the TX16S Mark II, the ultimate open-source radio. We provide the standard TX16S Mark II radio, TX16S Mark II Max radio, TX16S Mark II Max Radio Controller (Joshua Bardwell Edition), and TX16S Mark II MAX Pro MCK Version.

Click to know more about TX16S MarkII: TX16S Mark II Radio Comparison Chart

Launch Video


Features

  • Improved internal circuitry and optimized power supply.
  • New charge circuitry with integrated reverse-polarity protection.
  • Optimized charge IC now allows up to 2.2A internal USB-C charge current.
  • Rear-mounted audio jack provided headphone output.
  • V4.0 Gimbal improved centering and temperature stability (Same circuitry as AG01).
  • Optional high/low rear grips are included for improved ergonomics.
  • Improved S1/S2 knobs with clear centre-detents.
  • Improved LS/RS Sliders with smoother feel and better centre-detents.
  • Redesigned battery cover for improved battery access.
  • Retooled body shell with improved fit and finish.
  • Trainer socket changed to standard TRS 3.5mm socket.
  • Rear DIY Socket added for personalized mods.
  • Improved internal plastics for better longevity.
  • Available ELRS and 4in1 versions.

Specification

  • Item: TX16S Mark II
  • Size: 287x129x184mm
  • Weight: 750g (without battery)
  • Transmission frequency: 2.400GHz-2.480GHz
  • Transmitter module:  Option 1: Internal 4-in-1 multi-protocol module (CC2500 CYRF6936 A7105 NRF2401); Option 2: Internal ELRS (SX1280)
  • Transmitting power: Internal 4-in-1 multi-protocol module : Max 100mw (protocol dependent); Internal ELRS : Max 250mw (transmitting power is adjustable)
  • SD card: 256MB by default, 8GB maximum
  • Antenna gain: 2db (transmit power adjustable)
  • Working current: 400mA
  • Working voltage: 6.6-8.4v DC
  • Remote control distance:> 2km @ 22dbm
  • Radio firmware: EdgeTX
  • Module Firmware: Multiprotocol- Module (4IN1) -OR- ExpressLRS (ELRS)
  • Channels: Up to 16 channels (depending on the receiver)
  • Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272
  • Gimbal: Option 1: V4.0 Hall sensor with Aluminium fascia;  Option 2: AG01 CNC Hall sensor
  • Module Bay: JR compatible module bay
  • Upgrade method: Supports USB-C online / SD card offline upgrade

Support EdgeTX and OpenTX

EdgeTX is installed by default (Touch screen enabled).

* Requires EdgeTX version 2.6.0 or OpenTX version 2.3.15 or later.

RadioMaster TX6S Mark II Radio

Available in 4in1 and ELRS versions

Here are the tips for you to choose 4in1 or ELRS, reviews by OscarLiang

"If you can’t decide between ELRS and 4in1, I’d probably go for the ELRS version. It’s going to be the major RC protocol in the near future as it’s so powerful and affordable, with a wide range of tiny and inexpensive ELRS receivers available.

One reason to get the 4in1 is if you only want to use other protocols such as Frsky D8/D16, but these are kind of obsolete and slowly phasing out. Or if you are buying an external ELRS module for the radio, then it also makes sense to get the 4in1 as you don’t want to have another ELRS module onboard doing nothing. An external ELRS module might have the advantage of higher maximum output power of up to 1W. But honestly the internal module’s 250mW is plenty for FPV pilots, giving you miles of range in ideal conditions. "

Optional V4.0 Hall Gimbals and AG01 Gimbals

V4.0 Hall Gimbals

Standard version with V4.0 Hall Gimbals, same chipset as the AG01, optimized hall sensor circuitry, improves center point positioning and temperature stability. Stick travel, self-centering and stick tension are now externally adjustable.

RadioMaster V4.0 Hall Gimbal

AG01 Gimbals

AG01 Gimbal is fully CNC milled for ultimate precision with quad ball bearings for a smooth and precise feel. Featuring front-accessible tension and travel adjustment for easy fine-tuning.

TX16S Mark II Radio Controller (M2)

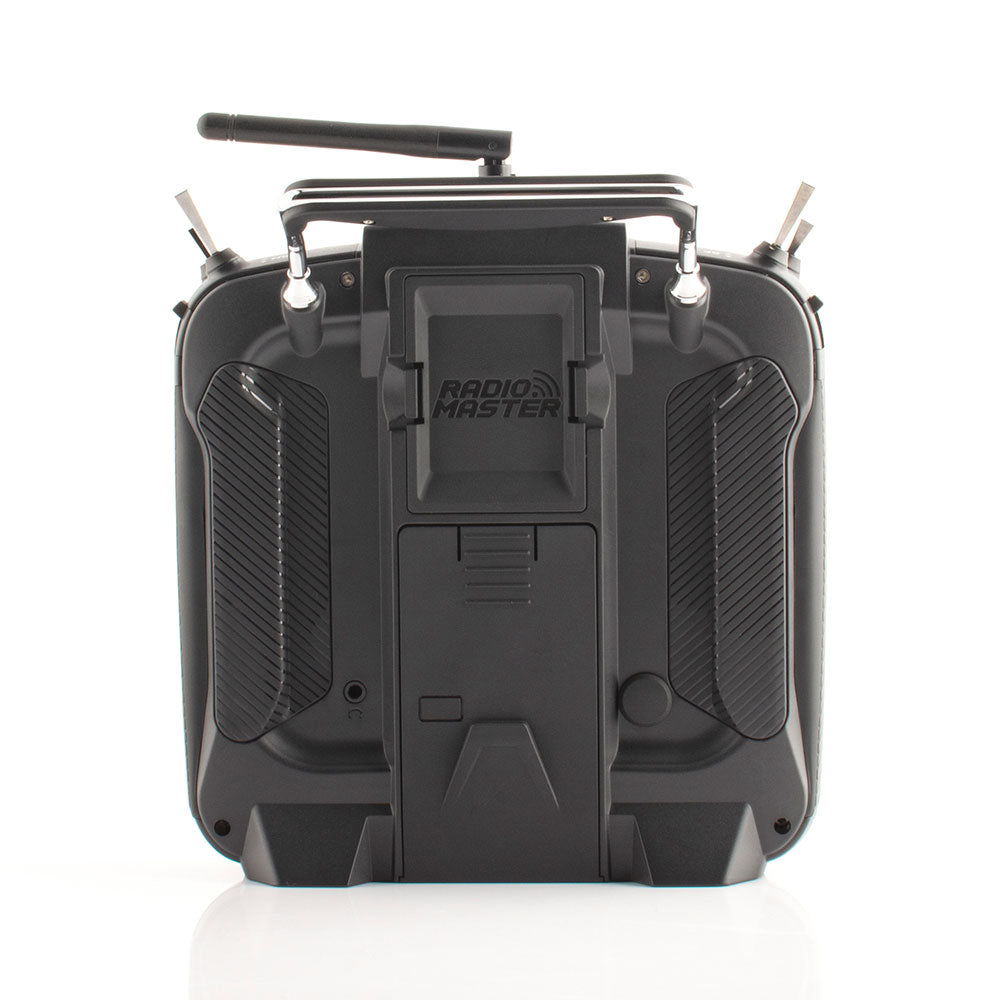

Flat & Raised Grips Included

Both the raised and flat versions of the rear grips are included allowing you to customize the feel of your TX16s MKII right out of the box.

Built-in dual speakers

External Module Bay

The TX16s natively supports Team Black Sheep MicroTX modules in CRSFmode with LUA scripts. Best of all the TX16s Internal 4-in-1 Multi-protocol module allows you to keep the MicroTX installed and switch between internal RF and Crossfire via software, no more module swapping.

RadioMaster TX6S Mark II Radio

Easy Firmware Updates

RadioMaster TX6S Mark II Radio

Upgraded Design

  • Retooled faceplate with improved fit and finish
  • Improved S1/S2 knobs with center detents
  • 4.3” IPS Color Display - The TX16s features a bright and clear 4.3-inch IPS color display for easy and convenient model setup and operation with adjustable brightness to suit all conditions.

RadioMaster TX6S Mark II Radio

  • Improved LS/RS Sliders with smoother feel and better centre-detents.

  • New 3.5mm Audio jack - Rear mounted audio jack minimizes RF interference from external modules and adds headphone audio feature.
  • Redesigned battery cover, easier to remove.
  • Rear DIY Socket added for personalised mods.

RadioMaster TX6S Mark II Radio

Radio Overview

More Options

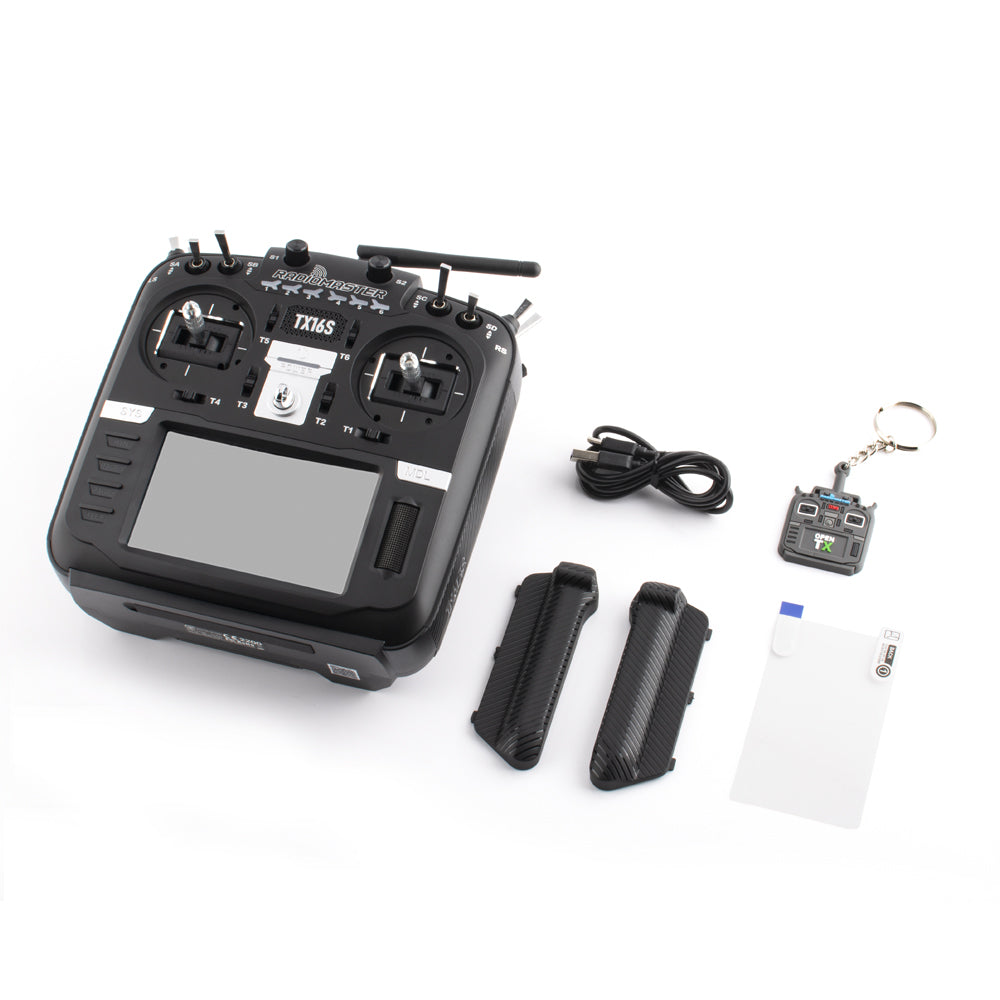

Package Includes

  • 1 * TX16S Mark II Radio Controller
  • 1 * 18650 Tray
  • 1 * USB-C Cable
  • 1 * Screen Protector
  • 1 pair of flat grips
  • 1 pair of raised grips (installed on radio by default)
  • 1 * TX16S Key Chain

    FAQs

    Due to the EU tax reform, VAT fees will be added to orders bound for EU member states if the standard shipping method is selected. Alternative shipping methods such as DHL do not add VAT fees. The recipient's VAT and EORI account number need to be provided.

    - For more FAQs and online resources, please click here to check it.

    - For warranty repairs and support please open a support ticket.

    - All tutorial videos, please check on RadioMaster Youtube Channel.

    For non-warranty repairs and service contact one of our authorized repair agents below Repair charges apply.

    - US: graysonhobby.com

    - EU: radiomasterrc.eu

    - UK: hobbyrc.co.uk

    - AU: contenderrc.com

    - Israel: zdrone.co.il
