[Pre-order] Ranger 2.4GHz ELRS Module
Ranger 2.4GHz ELRS Module

[Pre-order] Ranger 2.4GHz ELRS Module

No Reviews
Regular price$99.99
/

Type
  • VAT fees will be added to orders bound for EU member states.
  • Batteries can't be shipped separately, please purchase batteries with Radio units.
  • Customized products require a 40-day lead time and no refunds can be made after the order is placed.

The RadioMaster Ranger is the pinnacle of ExpressLRS module design. Built not only to look great but to last with its rugged CNC machined aluminum case that aids the high-efficiency cooling system as a heat sink. The Ranger is up to any task and provides all the power and functionality you need.

Featuring an OLED display, a directional menu key, and two assignable shortcut keys the Ranger can be adjusted on the fly and personalized to your needs.

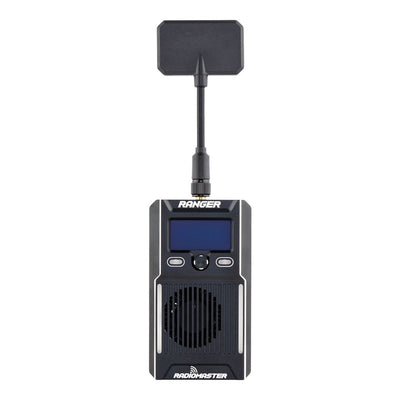

The Ranger includes a T Antenna for general use and a RadioMaster Moxon antenna for long-range directional applications. A micro module and nano module adapter are included to ensure the Ranger is compatible with most radios on the market today. A cable has also been included for use with Futaba radios that are CRSF capable.

Except for the Ranger, we also provide the Ranger Micro ExpressLRS Module and Ranger Nano ExpressLRS Module for your choice.

Please note this is the Pre-order. Orders start shipping in December 2022.

Ranger 2.4GHz ELRS Module

Launch Video

Features

  • OLED Display
  • Rugged CNC Case
  • Built-in Accelerometer
  • Packet rates up to F-1000Hz
  • Up to 1 Watt Power output
  • Wifi and Bluetooth support
  • High-efficiency cooling system
  • 5 Direction Nav key and customizable shortcut buttons
  • Micro and Nano adapters included
  • Moxon and T-antenna included
  • CRSF cable for compatible Futaba radios included

Specification

  • Item: Ranger 2.4GHz ELRS Module
  • Regulatory Domain: ISM2400
  • MCU: ESP32(main), ESP8285(aux, as ESP backpack)
  • RF chip: SX1281IMLTRT
  • Frequency Range: 2400 MHz - 2480 MHz
  • Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
  • Minimum receiver refresh rate: 25Hz
  • RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
  • Module bay adapters: JR standard 5pin socket & Nano standard 8pin socket
  • Futaba CRSF socket cable: Included
  • OLED screen:  64x128px
  • Wifi Support: Yes
  • Bluetooth support: Yes
  • 3-Axis Accelerometer: Yes (STK8BA58 MEMS Accelerometer)
  • Built-in RGB light strip
  • XT30 Power supply voltage: DC 6V - 16.8V
  • Weight: 138g (with Moxon antenna) / 135g (with T antenna) / 126g (without antenna)
  • Dimension: 95*51*25mm (without antenna)
Ranger 2.4GHz ELRS Module ExpressLRS Module
Ranger 2.4GHz ELRS Module ExpressLRS Module
Ranger 2.4GHz ELRS Module ExpressLRS Module
Ranger 2.4GHz ELRS Module ExpressLRS Module
Ranger 2.4GHz ELRS Module ExpressLRS Module
Ranger 2.4GHz ELRS Module ExpressLRS Module
Ranger 2.4GHz ELRS Module ExpressLRS Module
Ranger 2.4GHz ELRS Module ExpressLRS Module
Ranger 2.4GHz ELRS Module ExpressLRS Module
Ranger 2.4GHz ELRS Module
Ranger 2.4GHz ELRS Module ExpressLRS Module

Size

Ranger 2.4GHz ELRS Module ExpressLRS Module

Ranger Series

We wish to thank the ExpressLRS team for their support and testing during the development of the Ranger series. To learn more and support the ExpressLRS project visit https://www.expresslrs.org/

Ranger 2.4GHz ELRS Module ExpressLRS Module

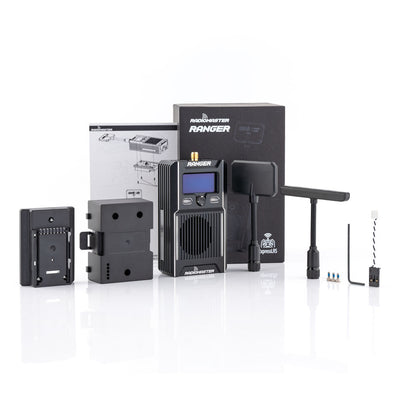

Package Includes

  • 1 * RANGER Module
  • 1 * Futaba CRSF socket cable
  • 1 * JR Adapter
  • 1 * Nano Adapter
  • 1 * T Antenna
  • 1 * Moxon Antenna
  • 1 * Hexagon socket screwdriver
  • 3 * M2*5 Screws
  • 1 * Assembly Manual

Need receivers too? Purchase the Ranger Combo, which includes the following items:
