Ranger Nano 2.4GHZ ELRS Module
- VAT fees will be added to orders bound for EU member states.
- Batteries can't be shipped separately, please purchase batteries with Radio units.
- Customized products require a 40-day lead time and no refunds can be made after the order is placed.
Want to experience the efficiency, long range and low latency of the ELRS protocol without purchasing a new radio? RadioMaster has you covered!

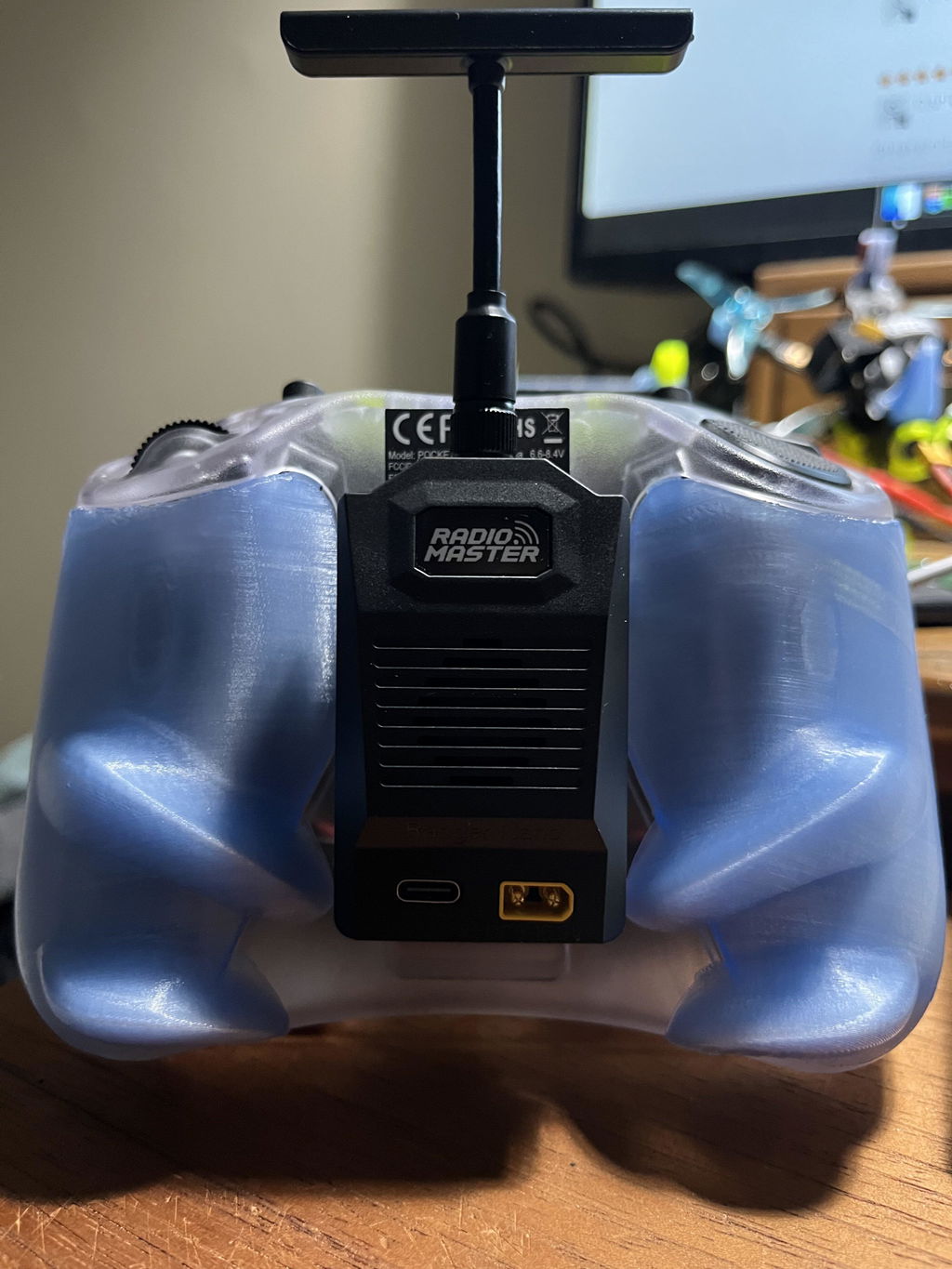

Featuring F-1000Hz refresh rates and a high-efficiency cooling system, the Ranger Nano 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (RadioMaster Zorro and more) to enjoy all that ELRS has to offer.
The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.
*Note: The Ranger Nano 2.4GHz ELRS Module fits Nano module bays, for JR style/Micro connectors, please consider the Ranger and the Ranger Micro modules. For more information on the Ranger series, please click here.
- Built-in ExpressLRS Backpack
High-efficiency cooling system
Wifi and Bluetooth support
Packet rates up to F-1000Hz
- With the Nano connector, support Zorro radio
Item: Ranger Nano Module
Regulatory Domain: ISM2400
MCU: ESP32(main), ESP8285(aux,as ESP backpack)
RF chip: SX1281IMLTRT
Frequency Range: 2400 MHz - 2480 MHz
Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
Minimum receiver refresh rate: 25Hz
RF Output Power: Default 100mW
Wifi Support: Yes
Bluetooth support: Yes
XT30 Power supply voltage: DC 6V - 16.8V
Weight: 48g (with antenna) / 39g (without antenna)
Dimension: 136*42*26mm (with T antenna) / 74*42*26mm (without antenna)
We wish to thank the ExpressLRS team for their support and testing during the development of the Ranger series. To learn more and support the ExpressLRS project visit https://www.expresslrs.org/
- Ranger 2.4GHz ELRS Module
- Ranger Micro 2.4GHZ ELRS Module
- Ranger Nano 2.4GHZ ELRS Module
- 2.4GHz T Antenna
- 2.4GHz Moxon Antenna
How to Replace Ranger Nano Board
1 * Ranger Nano Module
1 * T Antenna
Need receivers too? Purchase the Ranger Nano Combo, which includes the following items:
