AG01 CNC Hall Gimbal (HOLLOW SHAFT Version）
Regular price$79.99
- VAT will be applied to orders shipped to the EU.
- Batteries can't be shipped separately, please purchase batteries with Radio units.
- Customized products require a 40-day lead time and no refunds can be made after the order is placed.

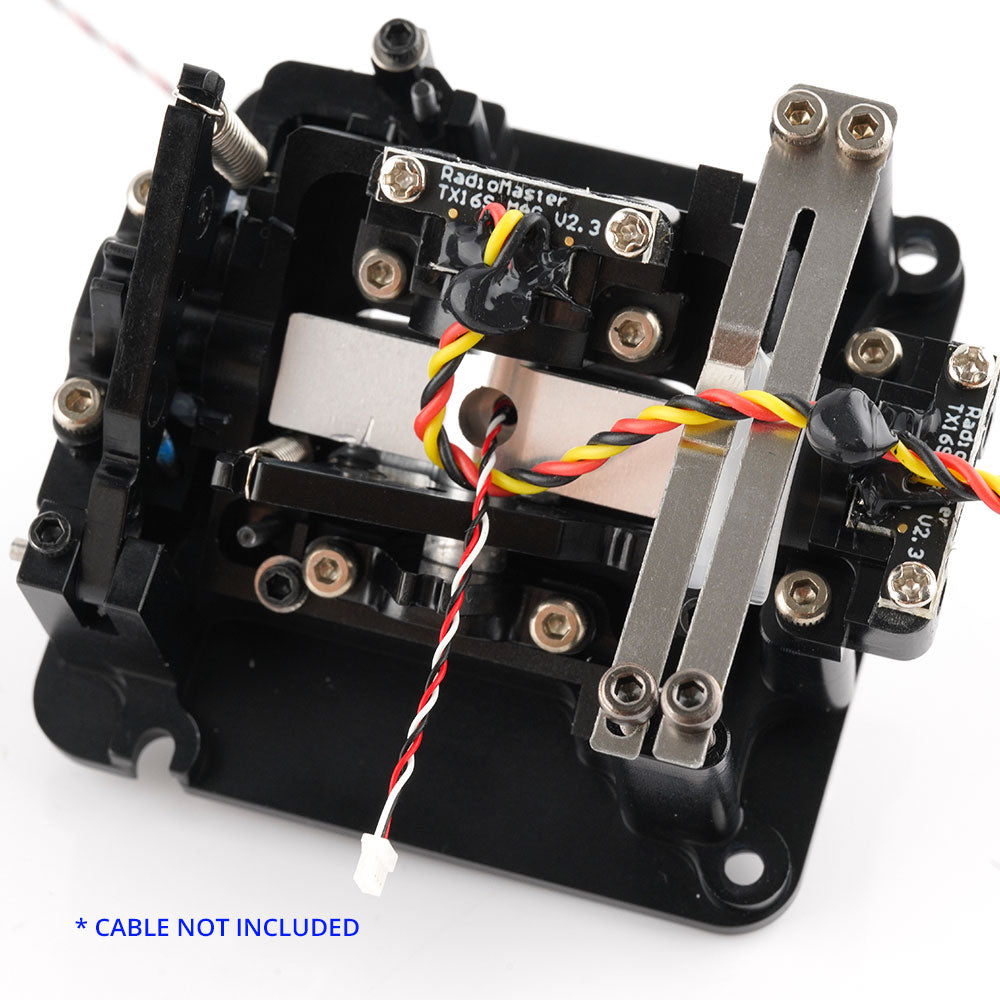

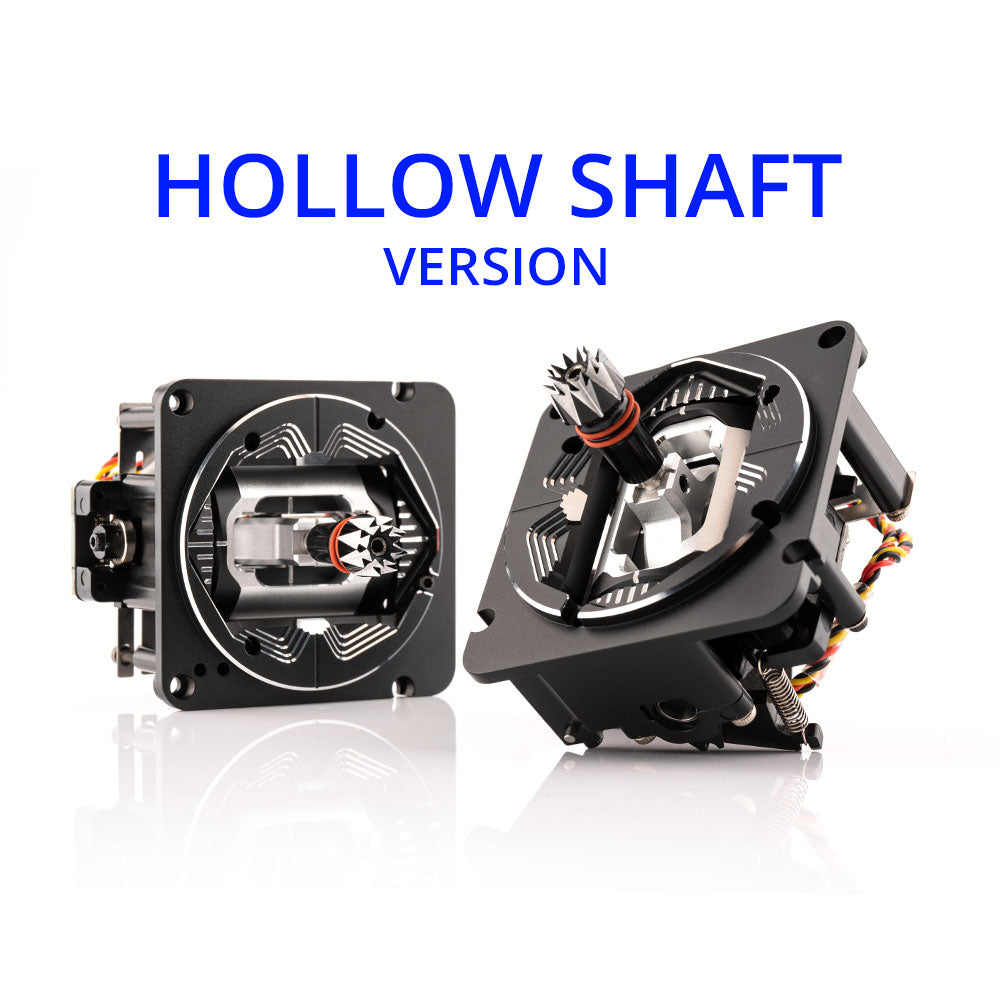

According to the feedback from some players, we specially design the AG01 Hall Gimbal HOLLOW SHAFT set. These gimbals have a hollow shaft to allow wiring for aftermarket 4mm gimbal stick ends with buttons and switches etc. These are for special use cases only. Unless this is required, normal AG01 CNC Hall Gimbals should be selected.
*Special hollow shaft version for adding gimbal stick switches
Features
- With a hollow shaft to allow wiring for aftermarket 4mm gimbal stick ends with buttons and switches etc.
- Made with CNC processed aviation grade aluminum.
- Non-contact hall sensors, for accurate control inputs and precise centering.
- Quad precision bearings, for unparalleled stick feel.
Specification
- Item: AG01 CNC Hall Gimbal- HOLLOWSHAFT- Set
- Sensing type: Hall
- Working voltage: DC 3.3V
- Linearity: Real-time (No delay)
- Adjustable travel range: 38°—54°
- Adjustable mode: Yes
- Adjustable tension: Yes
- Quad bearing: Yes
- Temperature range: -20°c-85°c
- Size: 60*53*56mm
- Weight: 162g/set
Size
Associated Products
- Normal AG01 CNC Hall Gimbals
- TX16S Mark II Series Radio
- AG01 CNC Hall Gimbal Sets New Colors
- AG01 MINI CNC Hall Gimbals for TX12 & Zorro
- TX16S Replacement HALL V4 Gimbal
Package Includes
- 1 * AG01 HOLLOWSHAFT CNC Hall Gimbal (Centering / Throttle)
- 1 * TX16S Softer Tension Spring Set
-
1 * Hexagon socket screwdriver
- 1 * Manual
Or
- 1 * AG01 HOLLOWSHAFT CNC Hall Gimbal (Throttle)
-
1 * AG01 HOLLOWSHAFT CNC Hall Gimbal (Centering)
- 2 * TX16S Softer Tension Spring Set
-
2 * Hexagon socket screwdriver
- 1 * Manual
